01
Monel K - 500 bar met uitstekende corrosiebestendigheid
specificatie
| Productnaam | Monel K-500 staaf | |
| Standaard | ASTM, JIS, DIN, GB, AISI, DIN, EN | |
| Buitendiameter | Ronde staaf | 4 mm-200 mm |
| Zeshoekige staaf | 18 mm-57 mm (11/16″ tot 2-3/4″) | |
| Vierkante balk | 18 mm-47 mm (11/16″ tot 1-3/4″) | |
| Plat staal | 1/2" tot 10", Dikte: 2 mm-150 mm, Maatwerk mogelijk | |
| Lengte | 1-6 meter, lengte kan worden aangepast. | |
| Fout | ±1% | |
| Certificering | ISO 9001, CE, API | |
| Oppervlaktebehandeling | Zwart, hoogglans gepolijst, ruw gedraaid, matte oppervlaktebehandeling, nr. 4, BA, enz. | |
| Productietechnologie | Warmwalsen, koudwalsen | |
| Land van herkomst | China | |
| Belangrijkste toepassingen | Werktuigbouwkunde, automobielindustrie, lucht- en ruimtevaart, bouwkunde, olie- en gasindustrie, energiesector, matrijzenproductie | |
| Pakket | Bundelen, verpakken in houten kisten, palletverpakking, plastic folieverpakking, roestwerende oliecoating, containertransport | |
| Betalingstermijn | TT, LC, contant, PayPal, DP, DA, Western Union of andere methoden. | |
| Aftersales service | 1. Kwaliteitsgarantieperiode 2. Retour- en omruilbeleid 3. Hulp bij levering en acceptatie 4. Verzamelen van klantfeedback | |

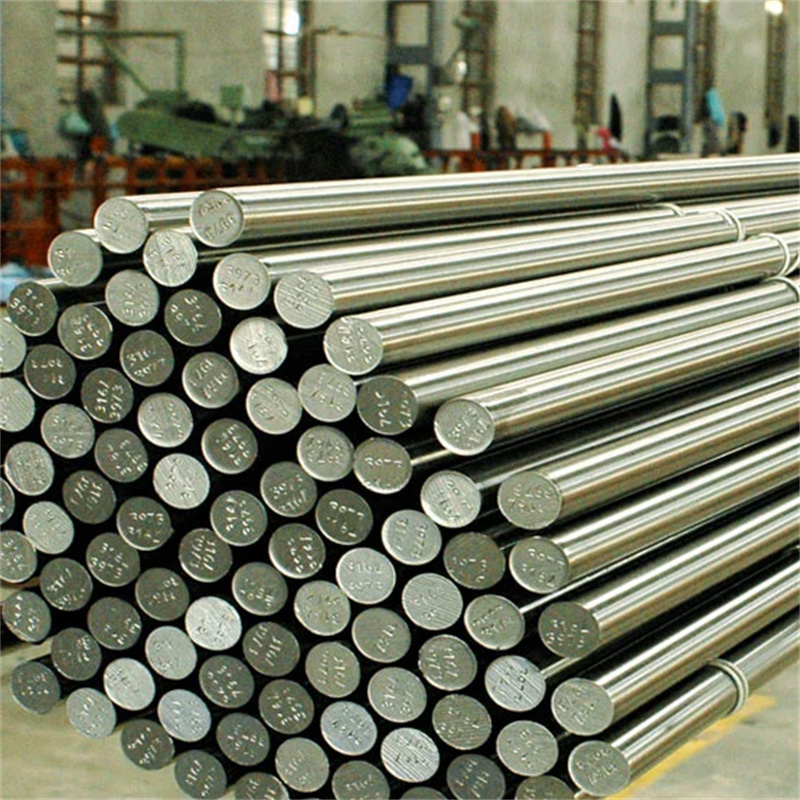

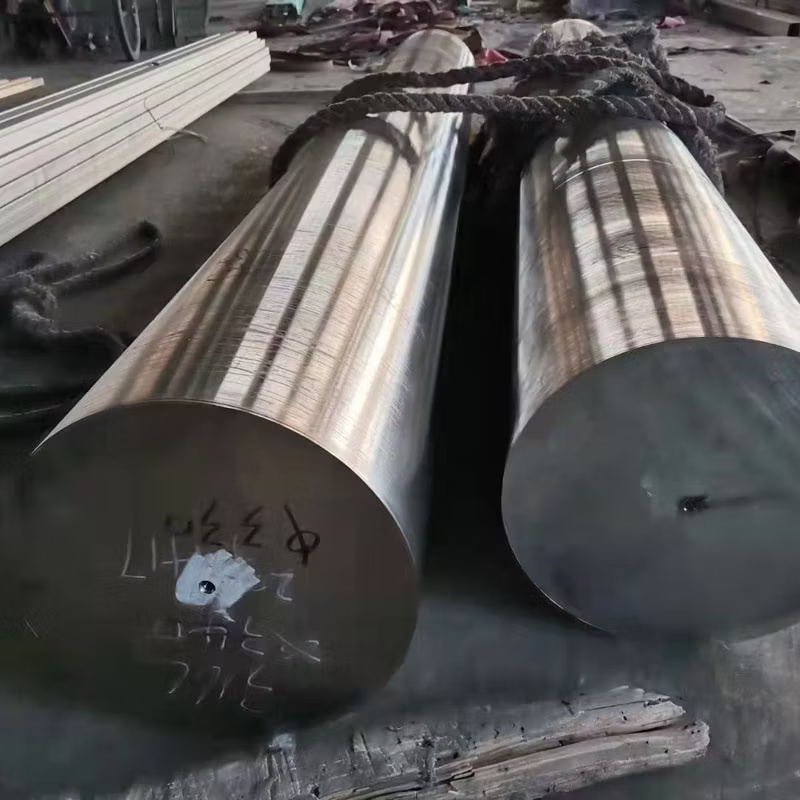

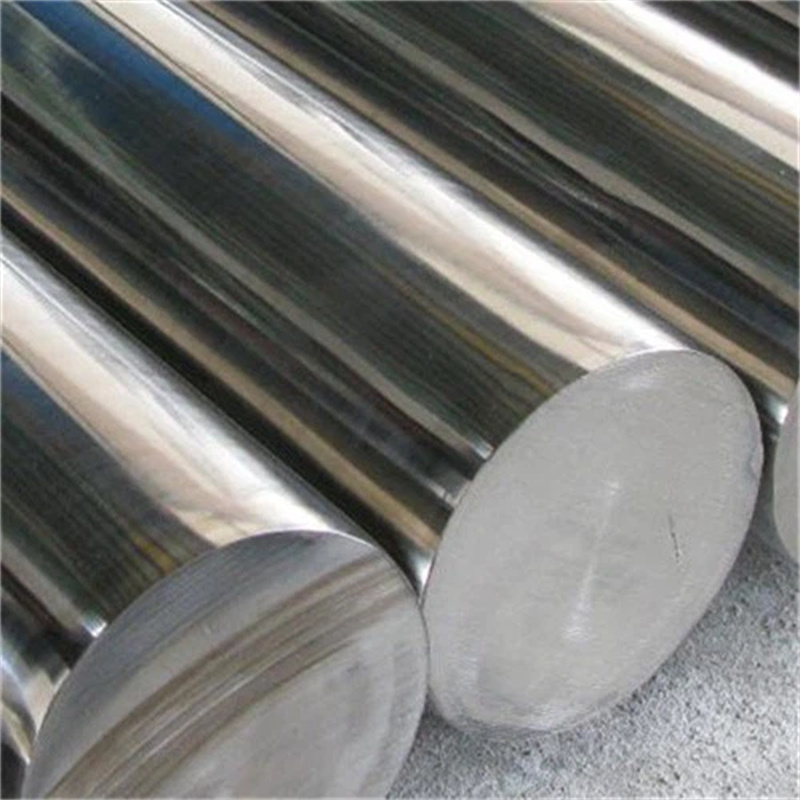

Productpresentatie
Chemische samenstelling
| C | Al | En | S | Van | Mn | Fe | In | Met |
| 0,18 max | 2.30 - 3.15 | 0,5 max | 0,01 max | 0,35 - 0,85 | 1,5 max | 2.0 max | 63,0 min | 27,0 - 33,0 |
Mechanische eigenschappen
| Treksterkte (ksi) | 0,2% vloeigrens (ksi) | Rekpercentage in 2 inch |
| 140 | 100 | 17 |
Fysieke prestaties
| Eenheden | Temperatuur in °C | |
| Dikte | 8,44 g/cm³ | Kamer |
| Soortelijke warmte | 0,1 kcal/kg.C | 21° |
| Smeltbereik | 1315-1350°C | - |
| Elasticiteitsmodulus | 179 KN/mm² | Kamer |
| Elektrische weerstand | 61,5 µΩ.cm | 21° |
| Coëfficiënt van expansie | 13,7 µm/m °C | 20 - 100° |
| Thermische geleidbaarheid | 17,2 W/m-°K | 21° |
